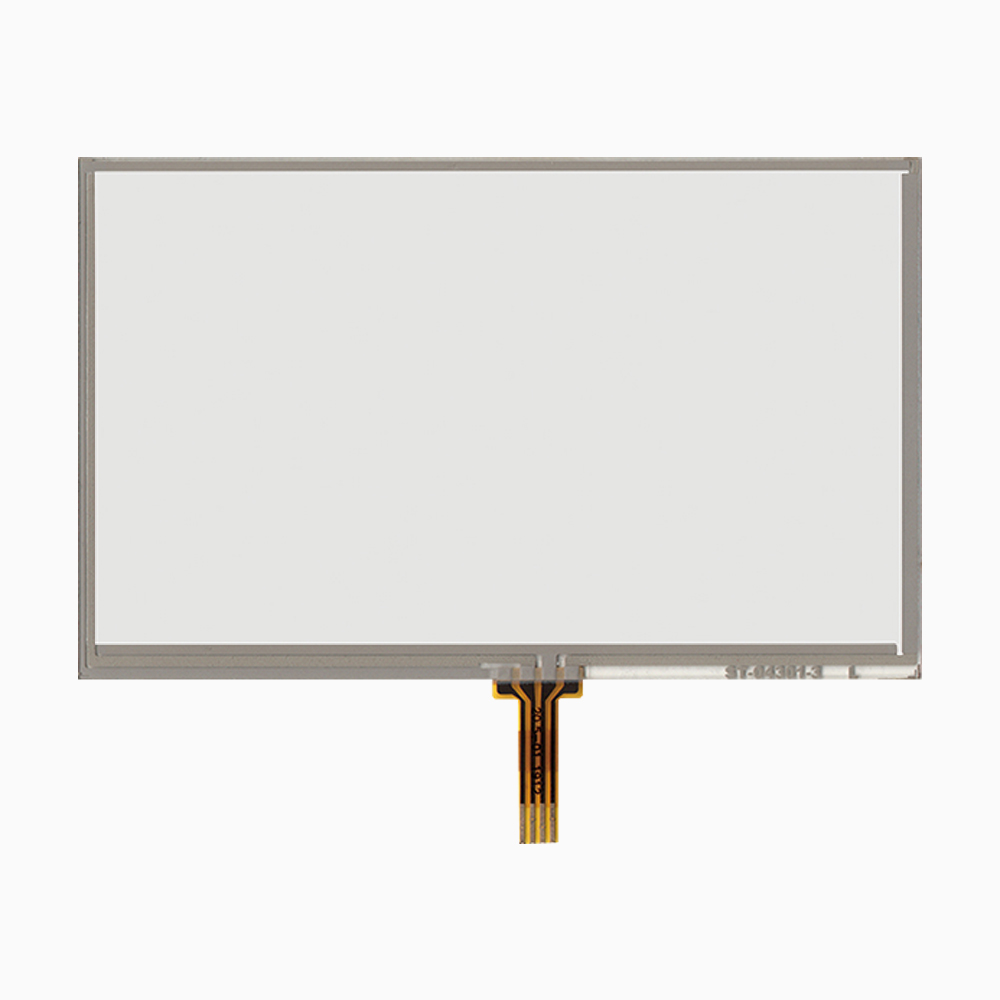

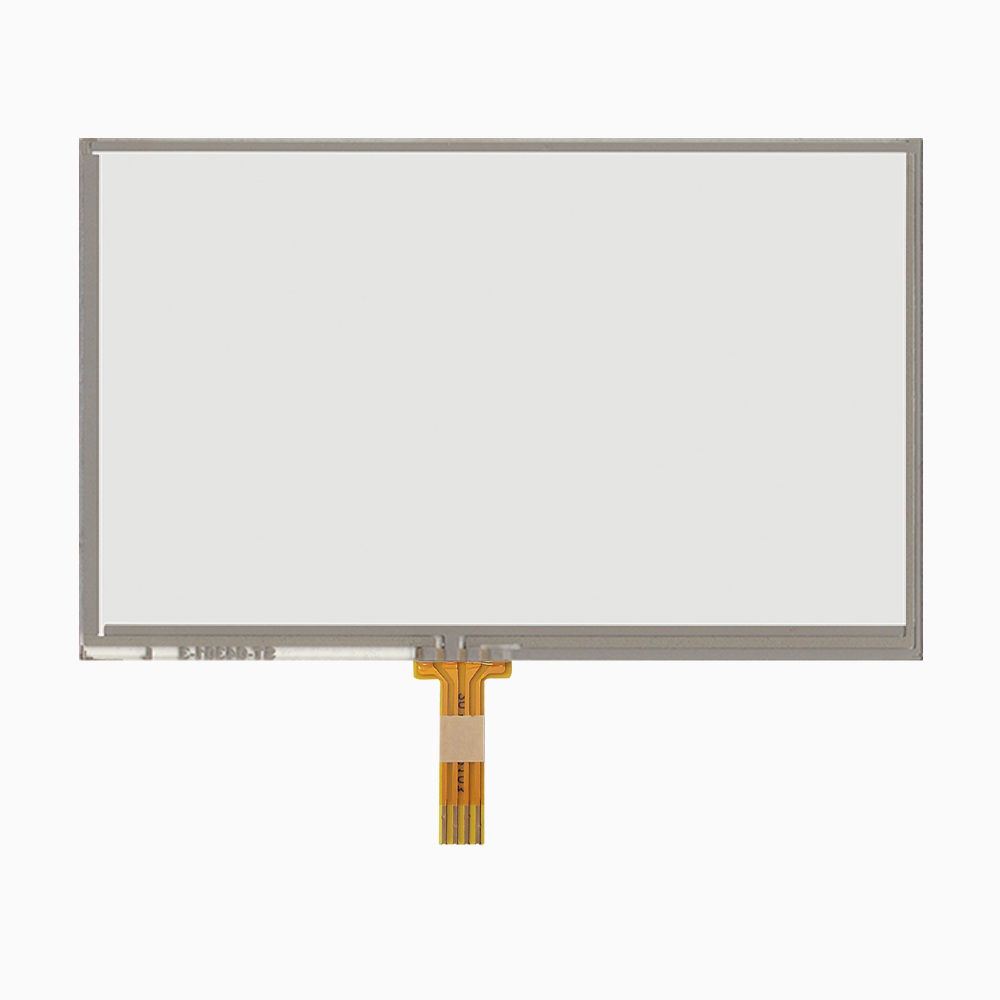

4.3‘’ 4-wires Resistive touch Panel for AT043TN24 V.7 LCD screen

We offer CAD drawings, product specifications, drivers for Android, Linux, and Windows systems, structural design guidance, and assistance with touch screen debugging and optimization.

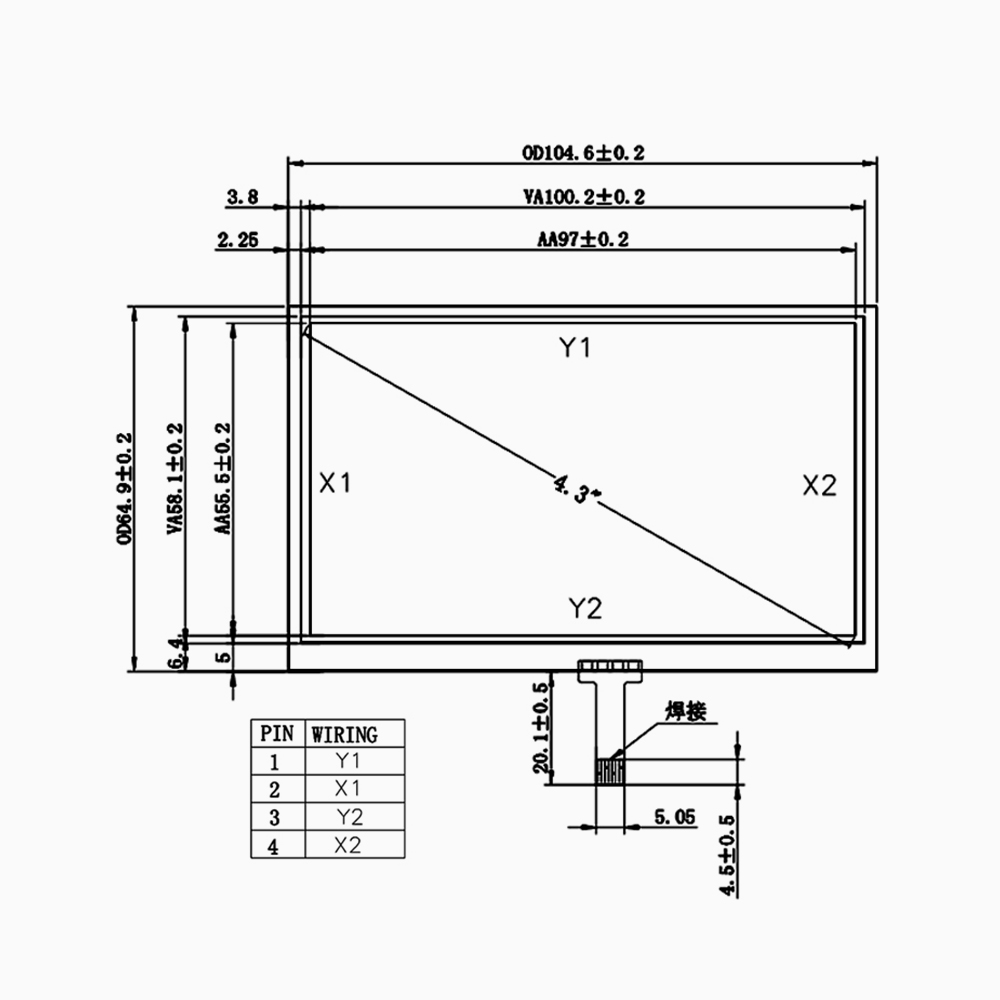

  • Parameters of Touch screen
    Touch Model：ST-04301
    Overall Size：104.6mm     64.9 mm
    Display Size：100.2mm     58.1mm
    Functional size：97mm     55.5mm
    Glass Thickness：0.7mm
    Total thickness: 1.2mm
    Product Structure：GLASS+FILM

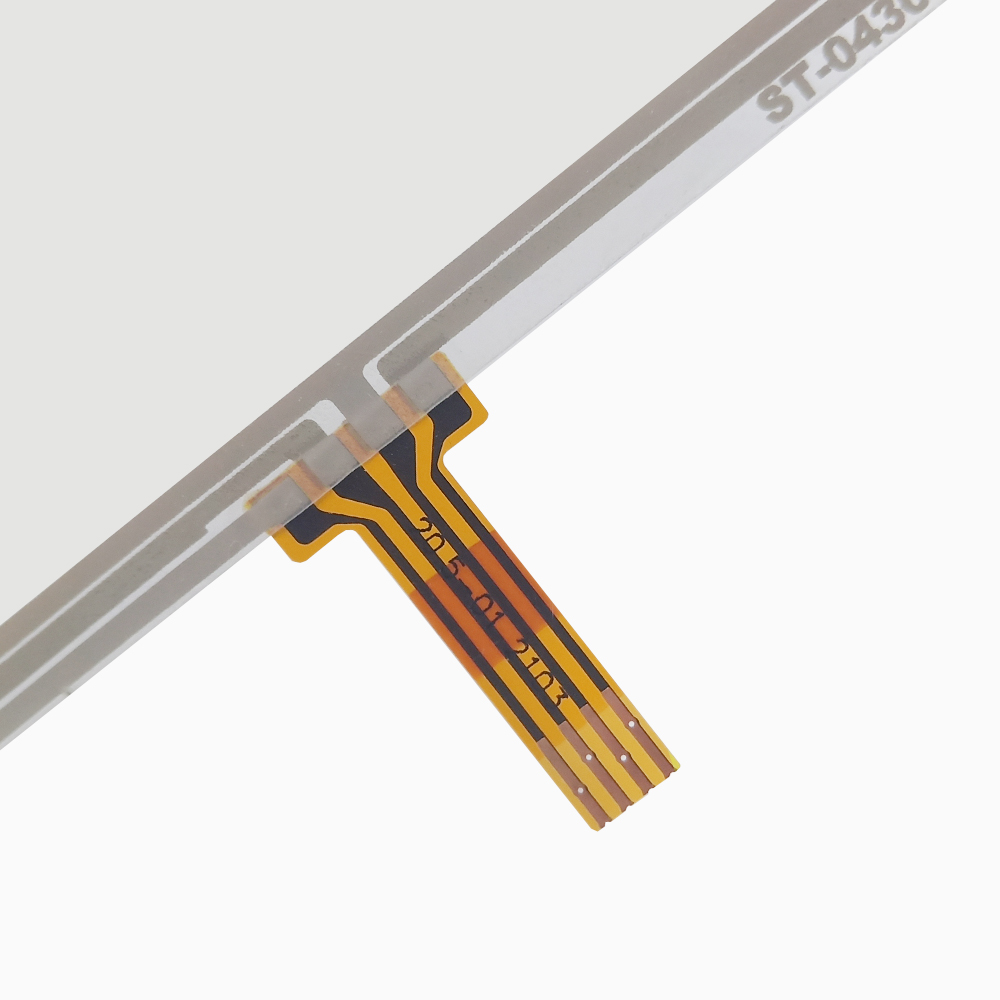

    Interface：1.25mm     4Pin
    FPC Model：20.5-01

  • Touch Performance
    Waterproof Function: support
    Glove Function: Support
    Anti-interference Ability: Super
    Touch Screen Transmittance: 80%±3
    Click Life: 1,000,000Hrs
    Marking Test: 100,000 times
    Surface Hardness：3H±0.5
    Touch Force: 20-80g

Operating temperature: -20~70 ℃
Storage temperature: -30~80 ℃

Passed medical-grade EMC and EFT testing and 100% compliant with RoHS standards.

      Widely used in high-demand industrial,

control and medical instruments, etc.
